OPTIWAVE 1010

Radar (FMCW) level transmitter for bypass chamber or magnetic level indicator

  • Continuous level measurement of clean liquids
  • 6 GHz radar
  • Measuring range:  0.3…8 m / 0.98…26.2 ft
  • -40…+150°C / +302°F; -1…40 psig / -14.5…580 psig

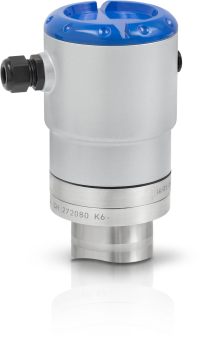

OPTIWAVE 1010 – Version with aluminium housing

Radar (FMCW) level transmitter OPTIWAVE 1010 – Version with aluminium housing

The OPTIWAVE 1010 is a 2-wire 6 GHz radar (FMCW) designed for continuous level measurement of clean liquids. It is welded to a bypass chamber or magnetic level indicator (MLI). This radar is a cost-effective solution for simple applications in industries like the chemical, power, water and wastewater industry. It comes pre-configured and ready to use. The dual process seal system permits the removal of the converter under process conditions. PACTwareTM, HART® DDs and DTMs are provided free of charge with full functionality.

Product highlights

  • Welded to a bypass chamber with optional IP 68 indicator
  • No minimum dielectric constant when equipped with a float
  • Dual process seal system with Metaglas® or Metapeek
  • Aluminium or stainless steel housing
  • Pre-configured in the factory and ready to use (plug & play)
  • Accuracy: ± 5 mm / 0.2" uncertainty
  • 2-wire, 4…20 mA/HART®
  • PACTware™, HART® DDs and DTMs provided free of charge with full functionality

Typical applications

  • Clean liquids in bypass chambers or magnetic level indicators, e.g. solvents, alcohols, bases, condensates, liquefied gases, hydrocarbons, hydraulic or motor oil, engine coolants, washing fluids, cooling or drinking water

Technical data

Product typeLevel transmitter
Measurement principlesFloat in bypass, Radar
Level measurement typeContinuous measurement
Measured mediaLiquids
Contact to measured mediumNo
Interface measurementNo
Measuring range (liquids)0.3…8 m/
0.98…26.2 ft
Process pressure (relative)-1…40 barg/
-14.5…580 psig
Process temperature-40…150°C/
-40…302°F
Wetted partsAustenitic stainless steel (1.4404/316L), Polyetheretherketone (PEEK)
Process sealsEPDM, FKM/FPM, Kalrez® 6375
Accuracy (liquids)±5 mm/
±0.2 in

Approvals/Standards

Certificates/Approvals ExATEX, EAC, IECEx, NEPSI
Certificates/Approvals OthersNACE
Ingress protectionIP66/67, NEMA4X/6P

Communication

Digital outputsHART®
Analogue outputs4…20 mA

Process connections

Flange connectionsEN (1092-1): DN15…50
ASME (B 16.5): 1/2…2"
Thread connectionsMale:
G1/2
1/2 NPT
